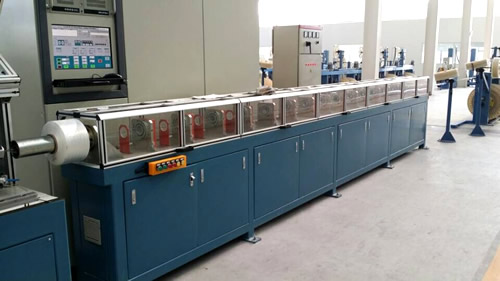

Applications：SZ Stranding can be done either as stand-alone process for 4-18 loose tube. Loose tube up to Ф3.5mm, Ribbons in tube up toФ8mm(max 6 unit)

Features:

Multi-motor full differential SZ stranding device makes the stranding angle to be 18π.

The stranding process guarantees in all circumstances low stranding tensionfluctuation, accurate and stable lay length and constant binding tension.

dual cross binders with an adequate Electric Control system enable a controlled stranding process

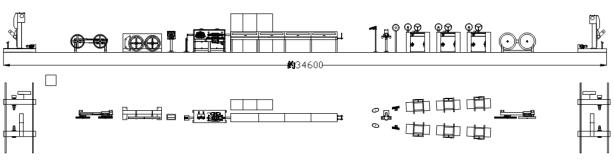

Equipment  component：

1、PN1250mm Central Member Pay-Off；

2、Ф800mm Horizontal wheel type tension controller；

3、 PN800 Loose Tube Pay-Off；

4、Jelly Filling；

5、SZ Stranding Equipment；

6、Cross Binder ;

7、Φ800mm Capstan ;

8、Ф800mm Control Dancer Take-Up；

9、PN1600mm Take-Up ；

10、Electrical Control System

TECHNICAL CHARACTERISTICS

Products6~18 pcs Ф4.0mm loose tubes SZ laminated stranded optic fiber cable

Process Speed(depends on Stranding lay Length and Binder yarn pitch)

120 m/min（Structural Speed）

Max100 m/min

Tube Count6/12/18（Φ1.5～4.0mm tube）

SZ Stranding lay Length45～500mm±5mm

SZ Stranding angle±4π～18π

SZ Stranding speedmax1600rpm

Binder yarn pitch15～40mm±3mm

Binder yarn roatate speedmax4000rpm

Length Measuring Accuracy<2‰

Attenuation Increase≤0.02dB/Km

External dimensionL≥35m，W≤5m

Power supply380V/50Hz,  min power＞ 40Kw

PAY-OFF & TAKEUP SPECIFICATION

Central Member POTube POTU

PN800～PN1250PN800PN800～PN1600
