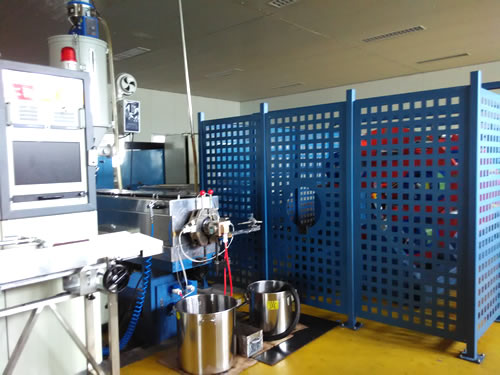

Applications：secondary coating line is specially designed for 48- 144 fibers ribbon Jelly filled loose tubes，Extrusion Material: PBT、PP etc.

Features:

High speed ribbon pay-off with cage structure（without backtwist pay-off system），Stable tension control

The new design for bubble remover device，this have a good effect

Highly accurate jelly filling die ensure the high speed production

Equipment component：

1、12 ribbon pay-off with cage ；

2、Jelly Filling System；

3、Extruder and auxiliary device（65x25Extruder、Crosshead、Desiccant Dryer、Vacuum Hopper Loader、Master Batch Loader）；

4、200KG Caterpillar；5、Cooling system（cooling water trough 、Dryer、Chiller unit）；

6、Three wheel tension system ;

7、Φ800 Capstan ;

8、Diameter gauging；

9、PN1600 Take-Up with traversing；

10、Electric Control System

TECHNICAL CHARACTERISTICS

Products 48- 144 fibers ribbon Jelly filled loose tubes

Process Speed

120 m/min（Structural Speed）

Max 100 m/min

cage speed 100 rpm

Fiber ribbon Count 12pcs

PO Tension 1.2～4N±0.2N

Diameter Range Φ4.0～10mm

Over-length Range 0～1.5‰±0.05

Three wheel tension 10～100N

Length Measuring Accuracy <2‰

Attenuation Increase ≤0.02dB/Km

External dimension L≤25m，W≤3.5m

Power supply 380V/50Hz,  ＞ 125Kw

PAY-OFF & TAKEUP SPECIFICATION

PO TU

PC410 PN800 PN1600

Flange Diameter, max. 410mm 800mm 1600mm

Barrel Diameter, min. 316mm 400mm 800mm

Width, max. 390mm 600mm 1180mm

Bore Diameter (standard), min. 50.8mm 80mm 80mm

Reel Weight, max 30kg
