Applications：secondary coating line is specially designed for 1 - 12 fibers Jelly filling loose tubes.

Extrusion Material: PBT、PP etc.

Features:

fully automatic dual-reel take-ups, changing reels reliably.

The new design for bubble remover device have a good effect.

Highly accurate jelly filling die ensure the high speed production

Spray cooling design for Capstan ensure longer cooling length and shorter production line.

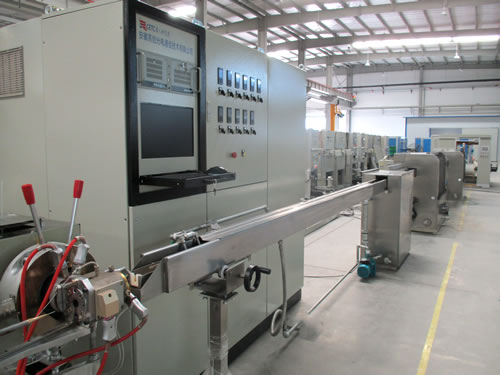

Equipment  component：

1、12 fiber pay-off ；

2、SZ strand；

3、Jelly Filling System and Bubble remover；

4、Extruder and auxiliary device（60x30 Extruder、Crosshead、Jelly filler、Vacuum Hopper Loader、Master Batch Loader）；

5、Spray cooling design for Capsta and Cooling System（cooling water trough 、Capstan、Dryer、Chiller unit）；

6、Diameter gauging；

7、PN800 Take-Up ；

8、Electric Control System

TECHNICAL CHARACTERISTICS

Products 1~12 fibers Jelly filled loose tubes

Process Speed

800 m/min（Structural Speed）

Max 600 m/min

Fiber cores 1~12 cores

PO Tension 0.4～1.5N±0.05

Diameter Range Φ1.2～3.5mm

Over-length Range 0～3‰±0.05

Length Measuring Accuracy <2‰

Attenuation Increase ≤0.02dB/Km

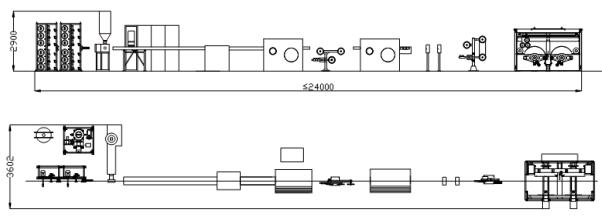

External dimension L≤25m，W≤3.5m

Power supply 380V/50Hz,  ＞ 90Kw

PAY-OFF & TAKEUP SPECIFICATION

PO REEL TU REEL

25Km 50Km 50Km PN800

Flange Diameter, max. 236mm 236mm 265mm 800mm

Barrel Diameter, min 160mm 160mm 160mm 400mm

Width, max 108mm 230mm 170mm 630mm

Bore Diameter, min 25.4mm 25.4mm 25.4mm 80mm

Reel Weight, max 5kg 10kg 10kg
