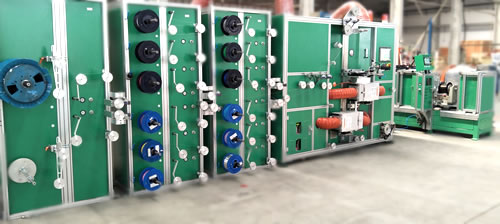

Applications：this line can be used for production of fiber ribbon with 4,6,8,12,24 cores.this line can also be used for ribbon rewinding.

Features:

Aautomatic traversing , “︹”OR“︺”

PO tension and TU tension Pneumatically adjustment

2 x Fusion VPS 10” (600 W/inch)

PLC control, touch human - machine interface, simple operation

TECHNICAL CHARACTERISTICS

Products 44~24C Optical fiber ribbon

Process Speed

1000m/min（structural speed）

500 m/min（12芯光纤带/ 12c fiber ribbon）

Speed up Time (adjustable) 30S~120S

Pay-Off Tension with fiber 0.3～1.0N ± 0.05N

Winding Tension with ribbom 2.0～5.0N

Length Measuring Accuracy ﹤0.1%

Attenuation Increase ≤0.02dB/Km

 External dimension（L×W×H） 8350mm×2250mm×2500mm（L×W×H）

Power supply 380V/50Hz, ＞ 36Kw

PAY-OFF AND TAKE-UP SPECIFICATION

Capacity 25Km 50Km 50Km

Flange Diameter, max 236mm 236mm 265mm

Barrel Diameter, min 160mm 160mm 160mm

Width, max 108mm 230mm 170mm

Bore Diameter, min 25.4mm 25.4mm 25.4mm

Reel Weight, max 5kg 10kg 10kg

TAKE-UP SPECIFICATION

25Km 50Km PN410

Flange Diameter, max. 236mm 265mm 410mm

Barrel Diameter, min. 160mm 160mm 316mm

Width, max. 108mm 170mm 400mm

Bore Diameter, min. 25.4mm 25.4mm 51mm

Reel Weight, max 5kg 10kg 30kg
