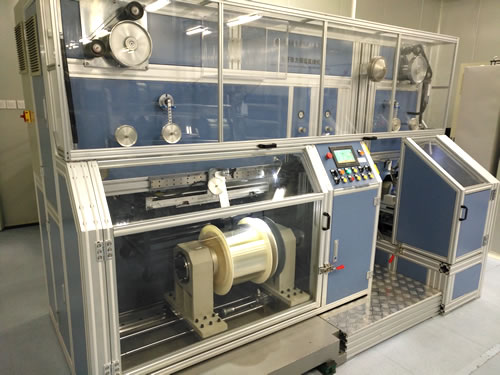

Applications：It is mainly used for the on-line tension test of optical fiber, to ensure the mechanical strength of optic fiber, and the rewinding function is also achieved.

Features:

Full automatic traversing

Pneumatically PO tension and TU tension adjustment

Stopping if fiber breaks at high speed

With shorter circle loops for testing tension.

TECHNICAL CHARACTERISTICS

Products proof testing of optical fibers  Process Speed  3000m/min（structural speed）  2200 m/min

Speed up Time (adjustable) ＞30S

Proof Testing Tension 5 - 20 N (< ±3 %)

Test Length 2.5~12m

Pay-Off and Winding Tension 0.3～1.0N ± 0.05N

Length Measuring Accuracy ﹤0.1%

Attenuation Increase ≤0.01dB/Km

External dimension（L×W×H） 2500mm×1460mm×1940mm（L×W×H）

Power supply 380V/50Hz, ＞ 13Kw

PAY-OFF SPECIFICATION

200Km(PO) 500Km(PO)

Flange Diameter, max 400mm 490mm

Barrel Diameter, min. 200mm 312mm

Width, max. 270mm 465mm

Bore Diameter, min. 50.4mm 47.4mm

Reel Weight, max 20kg 50kg

TAKE-UP SPECIFICATION

25Km(TU) 50Km(TU) 50Km(TU)

Flange Diameter, max. 236mm 236mm 265mm

Barrel Diameter, min. 160mm 160mm 160mm

Width, max. 108mm 230mm 170mm

Bore Diameter, min. 25.4mm 25.4mm 25.4mm

Reel Weight, max 5kg 10kg 10kg
