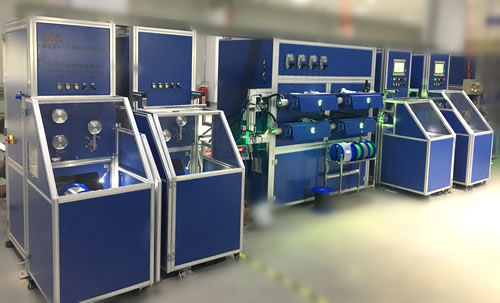

This machine is used to color the surface of fiber by ink through UV curing, then it will be very easy to identify fibers. The system can be used also for rewinding without coloring.

Features:

Full automatic traversing

Pneumatically PO tension and TU tension adjustment

Adopting German UV power supply

Imported squelch fan used in curing system, built-in installation

TECHNICAL CHARACTERISTICS

Products optical fiber coloring

Production Speed(depends on ink and UV lamp) 3000m/min（structure speed） Max 2500m/min(7.5Kw/ LAMP-2unit）

Speed up Time (adjustable) ＞30S

PO and TU Tension 0.3～1.0N ± 0.05N

UV upcoating thickness 3～5μm

Length Measuring Accuracy ﹤0.1%

Attenuation Increase ≤0.01dB/Km

External dimension（L×W×H） 5130mm×1875mm×2000mm（L×W×H）

Power supply 380V/50Hz, ＞ 30Kw

PAY-OFF AND TAKE-UP SPECIFICATION

25Km 50Km 50Km

Flange Diameter, max 236mm 236mm 265mm

Barrel Diameter, min 160mm 160mm 160mm

Width, max 108mm 230mm 170mm

Bore Diameter, min 25.4mm 25.4mm 25.4mm

Reel Weight, max 5kg 10kg 10kg
