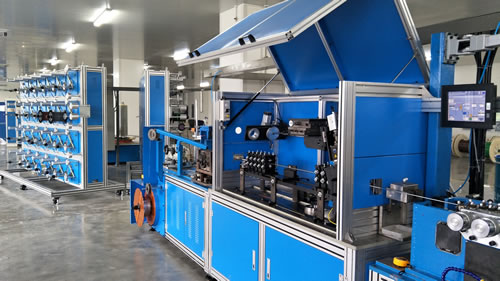

Applications：The line is used to produce stainless steel tubes  up to 48 standard application fibers (FIST = fiber in steel pipe).FIST applied to OPGW / OPCC, submarine cable products manufacturing.

Features:

Reliable laser ensure higher welding speed.

Precise PO tension and TU tension

Fast and easy set-up of the line allows easy operation.

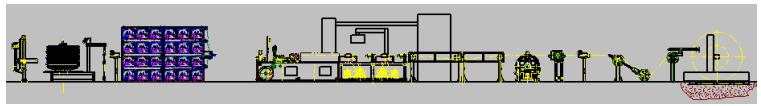

Equipment  component：

1、Steel tape pay-off；2、48-core optic fiber pay-off；3、Steel tape cutting and winding device ;4、2kw Laser and cooling device；5、Forming dies；6、Tong type caterpillar；7、3-wheel tensioning device ;8、Ф8000 wheel type capstan ;9、Take-Up tensioning device ；10、TU with traversing; 11、Electric Control System

TECHNICAL CHARACTERISTICS

SSLT production line is used to produce OPGW optic fiber cable, submarine optic fiber cable, metallic pipe sheathing cable.

Technical specifications

Construction speed 30m/min

Production speed 20m/min

Power supply 380V/50Hz  Power: 120kw

Overall dimension（L×W×H） 30000mm×4000mm×3000mm
