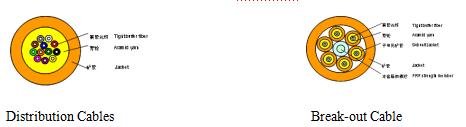

Applications：This line is designed to produce distribution cable and a big variety Of fiber optical indoor cable designs with multi-cores. Extrusion Material PVC、LSZH etc.

Features:

Adjustable extruder head designs

Precise PO tension and TU tension

Fast and easy set-up of the line allows easy operation.

Equipment  component：

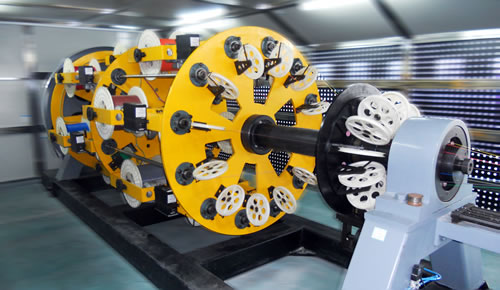

1 Multi-core fiber pay-off（include cage）；

2、Aramid yarn pay-off；

3、converge device ;

4、Extruder and auxiliary device（65x25 Extruder、Crosshead、Desiccant Dryer、Vacuum Hopper Loader）；

5、Cooling Section system（4m hot water trough, 12mcooling water trough、Dryer、Chiller unit）；

6、Diameter gauging；

7、Ф630mm Capstan ;

8、 100M Cable Accumulator（include dancer control） ;

9、Take-Up ；

10、Electric Control System

TECHNICAL CHARACTERISTICS

Products Simplex and Duplex Premises Cable

Process Speed(depends on cable structure) 200 m/min（Structural Speed）

Max 150 m/min

Extruder Type 65x25, ≤100kg/h

Diameter Range Ф3.2～12mm

Tight Buffer Fiber reel Count 4～24pcs

 TBF PO Tension 1～1.5N±0.1N

Aramid yarn PO Tension 0.5～3N

premises TU tension 5～20N

Length Measuring Accuracy <2‰

External dimension L≤32m，W≤3m

Power supply 380V/50Hz,  ＞100Kw

PAY-OFF & TAKEUP SPECIFICATION

(PO) （TU）

PN400 PN630 PN800

Flange Diameter, max. 400mm 630mm 800mm

Barrel Diameter, min. 200mm 315mm 400mm

Width, max. 350mm 400mm 400mm

Bore Diameter (standard), min 56mm 56mm 56mm

Reel Weight, max 30kg 30kg
