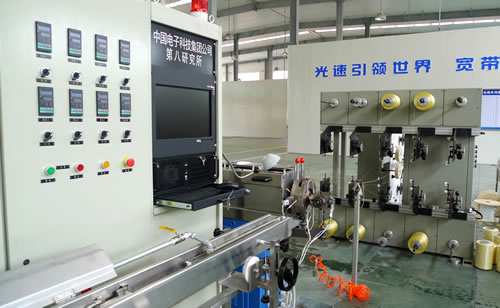

Applications：premises cable extrusion line is designed to cover the production of 1~2 fiber optical indoor cable designs. Extrusion Material PVC、LSZH etc.

Features:

Adjustable extruder head designs

Precise PO tension and TU tension

Fast and easy set-up of the line allows easy operation.

Equipment  component：

1、2-road fiber pay-off；

2、Aramid yarn pay-off；

3、converge device ;

4、Extruder and auxiliary device（45x25 Extruder、Crosshead、Desiccant Dryer、Vacuum Hopper Loader）；

5、Cooling system（4m hot water trough, 12m cooling water trough、Dryer、Chiller unit）；

6、Diameter gauging；

7、Ф630mm Capstan ;

8、 100M Cable Accumulator（include dancer control） ;

9、Take-Up ；

10、Electric Control System

TECHNICAL CHARACTERISTICS

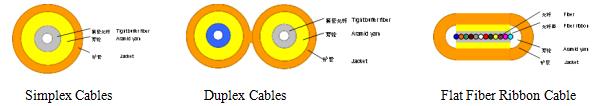

Products Simplex and Duplex Premises Cable

Process Speed

200 m/min（Structural Speed）

Max 150 m/min (PVC)

Extruder Type 45x25, ≤50kg/h

Diameter Range Ф1.6～2.8mm

Tight Buffer Fiber reel Count 2pcs

TBF PO Tension 1～1.5N±0.1N

Aramid yarn PO Tension 0.5～3N

premises TU tension 5～20N

Length Measuring Accuracy <2‰

External dimension L≤32m，W≤3m

Power supply 380V/50Hz,  ＞62Kw

PAY-OFF & TAKEUP SPECIFICATION

(PO) （TU）

PN400 PN400 PN630

Flange Diameter, max. 400mm 400mm 630mm

Barrel Diameter, min. 200mm 200mm 315mm

Width, max. 350mm 350mm 400mm

Bore Diameter (standard), min 56mm 56mm 56mm

Reel Weight, max 30kg 30kg
