Applications：0.6/0.9mm Tight Buffer Fiber is produced as that fiber is sheathed by buffer material. Extrusion Material PVC、LSZH 、Hytrel、Nylon etc.

 Features:

Self-centering extruder head designs

Tensions of optical fiber Payoff  and takeup are accurate and constant

Fast and easy set-up of the line allows easy operation.

The modular line component concept allows the  production of the buffers for a variety of different kind of fiber optical indoor cables.

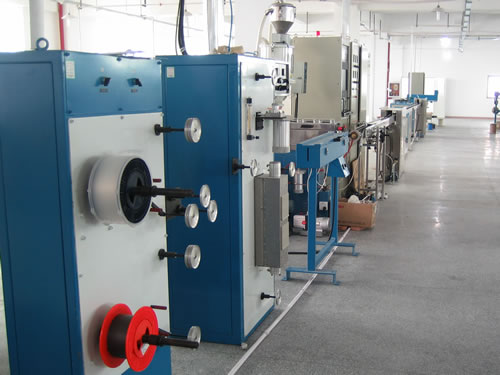

Equipment  component：

1、fiber pay-off ；

2、Fiber Preheater；

3、Extruder and auxiliary device（30x25 Extruder、Crosshead、Vacuum system 、Desiccant Dryer、Vacuum Hopper Loader）；

4、Cooling system（4m hot water trough, 8m cooling water trough、Dryer、Chiller unit）；

5、Diameter gauging；6、Capstan ;

7、 Take-Up ；8、Electric Control System

TECHNICAL CHARACTERISTICS

Products 0.6/0.9mm Tight Buffer Fiber

Process Speed

400 m/min（Structural Speed）

Max 300 m/min

Extruder Type 30*25, ≤20kg/h

Diameter Range Φ0.6～0.9mm

Fiber reel Count 2个

Fiber PO Tension 0.4～1.2N±0.05N

Buffer TU tension 0.5～3N±0.1N

Length Measuring Accuracy <2‰

Attenuation Increase ≤0.02dB/Km

External dimension 长度≤23m，宽度≤2m

Power supply 380V/50Hz,  ＞40Kw

PAY-OFF & TAKEUP SPECIFICATION

(PO) （TU）

25Km(PO) 50Km(PO) PC410

Flange Diameter, max. 236mm 265mm 410mm

Barrel Diameter, min. 160mm 160mm 316mm

Width, max. 108mm 170mm 390mm

Bore Diameter (standard), min. 25.4mm 25.4mm 50.8mm

Reel Weight, max 5kg 10kg 30kg
