Applications：sheathing line is designed for to fulfill a wide range of different needs for the covering the needs of fiber optic cable sheathing. Extrusion Material: PE、PVC、LSZH etc.

Features:

Proven and reliable technology enables high prformance and versatility for a wide range of  fiber optic cables.

Easy operation of tape forming devices with higher precision.

Fast and easy set-up of the line allows easy operation.

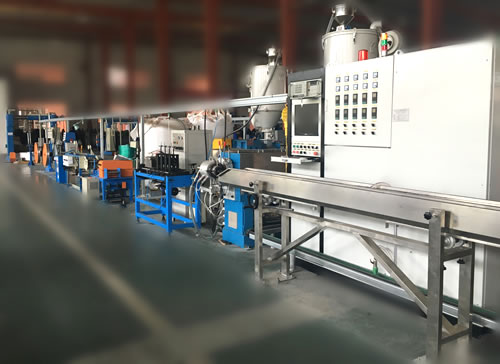

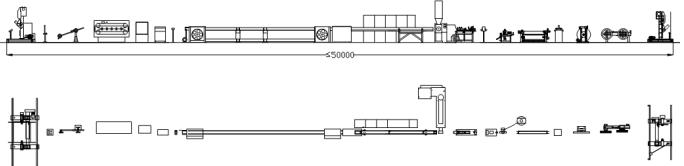

Equipment  component：

1、PN1600mm Pay-Off；

2、Ф800mm Horizontal wheel type tension controller；

3、Tape Pay-Off；

4、Tape Welding Unit；

5、Tape Accumulator；

6、Tape Corrugation Unit  ;

7、Jelly Application ;

8、Tape Forming Table ；

9、Extruder and auxiliary device（90x25Extruder、Crosshead、Desiccant Dryer、Vacuum Hopper Loader、Vacuum system）；

10、Cooling system（hot water trough, cooling water trough 、Dryer）；

11、Diameter gauging ;

12、frequency AC spark test；13、ink-jet printer；

14、800KG Caterpillar ;

15、Control Dancer Take-Up；

16、PN1800mm Take-Up ；

17、Electrical Control System

TECHNICAL CHARACTERISTICS

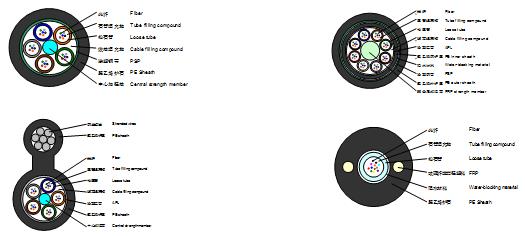

Products Optical cable inner and outer sheaths with various structures

Process Speed 120 m/min（Structural Speed）

Max100 m/min (Φ9.0mm)

Extruder Type 90*25, ≤260kg/h(PE)

Core daimeter Φ5.0～25mm

Sheath daimeter Φ7.0～30mm

Length Measuring Accuracy <2‰

Attenuation Increase ≤0.02dB/Km

External dimension min length≥50m， max width≤6m

Power supply 380V/50Hz,  min power＞ 140Kw

PAY-OFF & TAKEUP SPECIFICATION

PO TU

PN800～PN1600 PN1000～PN1800
