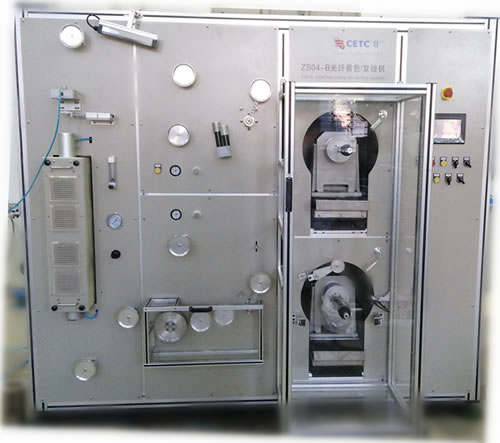

ZS04 Optical Fiber Coloring and Rewinding Machine

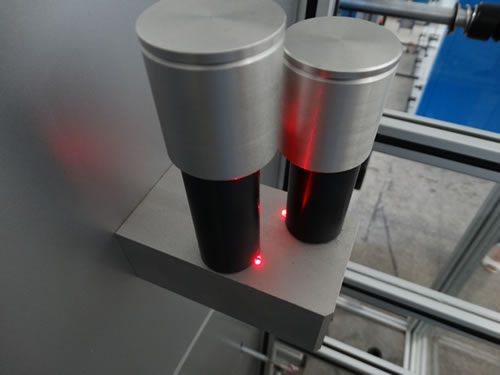

    UV-upcoating Die

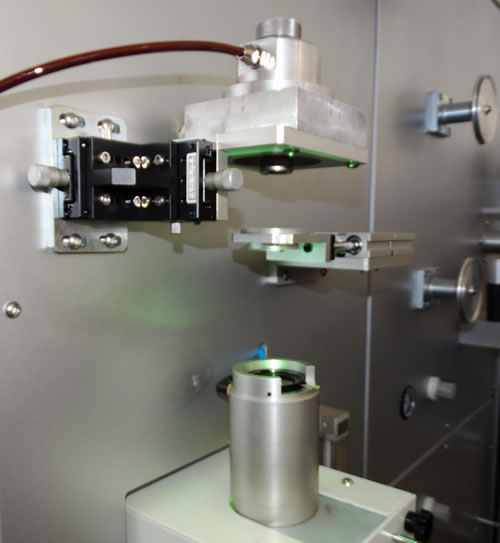

    Centring detector for PAYOFF

Applications：This machine is used to color the surface of fiber by ink through UV curing, then it will be very easy to identify fibers. The system can be used also for rewinding without coloring。

Features：

Full automatic traversing
Pneumatically PO tension and TU tension adjustment
Adopting German UV power supply
Imported squelch fan used in curing system, built-in installation

TECHNICAL DATAS

Products： optical fiber coloring/ optical fiber coloring
Production Speed(depends on ink and UV lamp)： 2000m/min（structure speed） Max 1600 m/min（6Kw/LAMP）
Speed up Time (adjustable)： ＞30S
PO and TU Tension： 0.3～1.0N ± 0.05N
UV upcoating thickness： 3～5μm
Length Measuring Accuracy： ﹤0.1%
Attenuation Increase： ≤0.01dB/Km
External dimension（L×W×H）： 2250mm×1345mm×1975mm（L×W×H）
Power supply： 380V/50Hz, ＞ 10Kw

PAY-OFF AND TAKE-UP SPECIFICATION

                25Km   50Km    50Km
Flange Diameter, max： 236mm 236mm 265mm
Barrel Diameter, min： 160mm 160mm 160mm
Width, max： 108mm 230mm 170mm
Bore Diameter, min： 25.4mm 25.4mm 25.4mm
Reel Weight, max： 5kg 10kg 10kg
